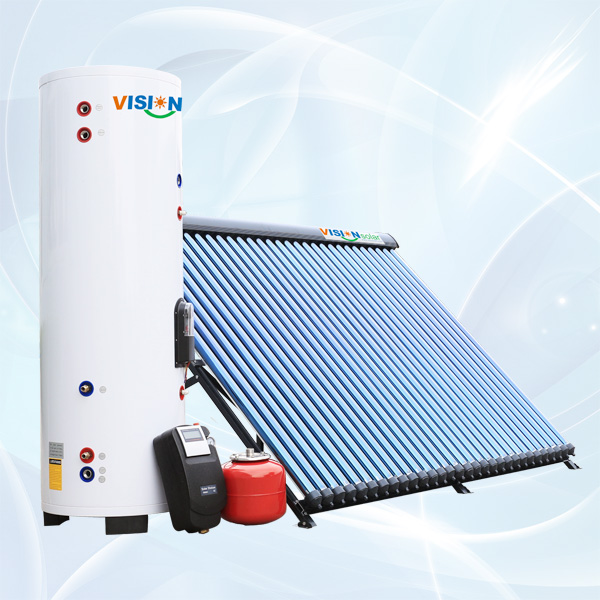

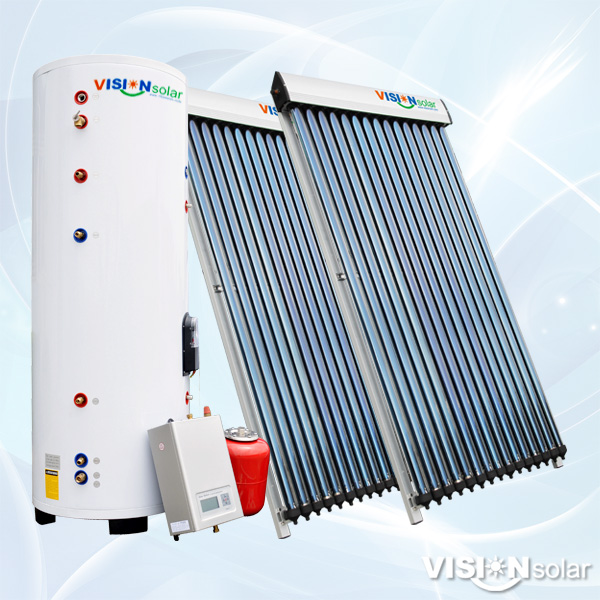

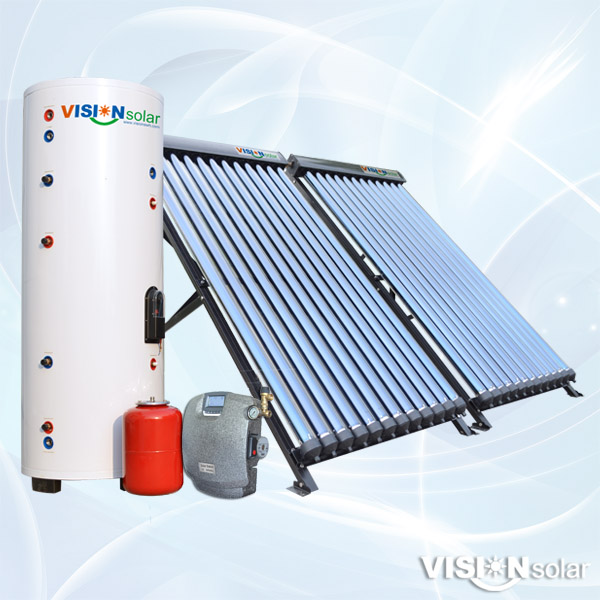

Split Heat Pipe Pressurized Solar Water Heater VS-H

SYSTEM DESCRIPTION Vision VS series split pressurized solar water heater incorporates a heat pipe solar collector, pressurized water tank, pump station and accessories. It is specially designed for villa buildings. The solar collector may b

SYSTEM DESCRIPTION

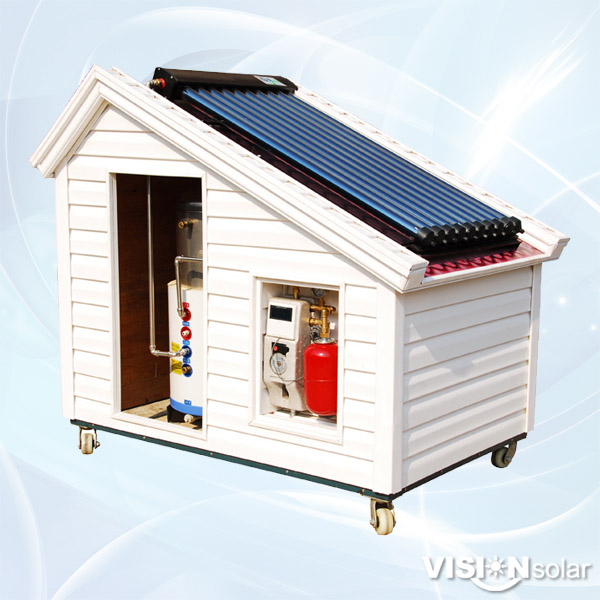

Vision VS series split pressurized solar water heater incorporates a heat pipe solar collector, pressurized water tank, pump station and accessories. It is specially designed for villa buildings. The solar collector may be installed either on house roof or wall while water tank may be placed anywhere inside villa.
MAIN FEATURES
Reliable collector with average daily efficiency over 60.7%
High efficiency heat pipe for fast and indirect water heating
System works without drainage even if one tube is broken
Super anti freezing performance for extreme cold climate
High pressure hot water supply from solar storage tank
Compatible with electric or gas heating devices
Working all year round even in cold climate
Designed for 30 years working life
SPECIFICATION
Tank capacity: 100 ~ 1000 Liter
Vacuum tube size: Φ58*1800MM
Vacuum tube: Three-target coating Cu/SS-ALN(H)/SS-ALN(L)/ALN
Heat pipe tube: High-quality TU1 copper 14MM or 24MM condenser
Manifold: Copper pipe header, rock wool & PU insulation, aluminum casing
Inner tank material: Food-grade stainless steel SUS304-2B or SUS316L
Tank insulation: High-density PU foam with 80 hour heat preservation
Outer tank material: High-quality color steel or stainless steel SUS304
Bracket material: Shaped strong aluminum alloy or stainless steel
Accessories: Solar pump station; electric heater; magnesium anode
Solar collector angle: 25°; 38°; 45°
Hail Resistance: 25MM
Anti-freezing: -40°C
Working pressure: 6.0 bar
