Pre-insulated Flex Solar Hose Pipe

INTRODUCTIONVISIION pre-insulated flex hose pipe is an easy-to-install tubing system specially designed for the solar hot water systems.The whole system is a product that a corrugated stainless steel pipe fully insulated and incorporates a

INTRODUCTION

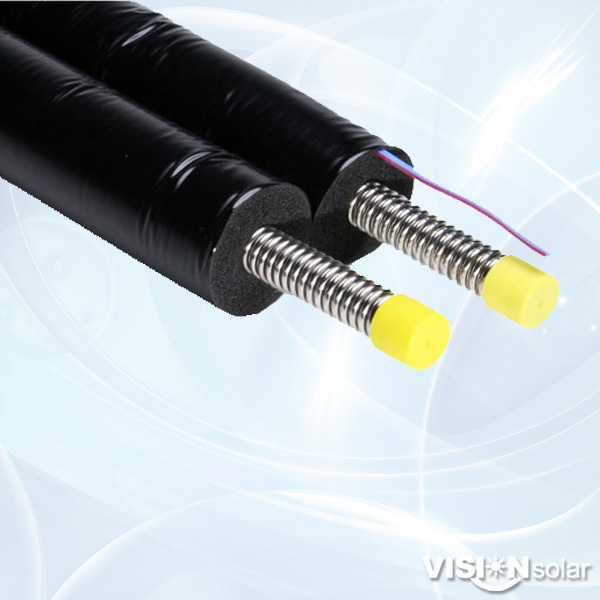

VISIION pre-insulated flex hose pipe is an easy-to-install tubing system specially designed for the solar hot water systems.

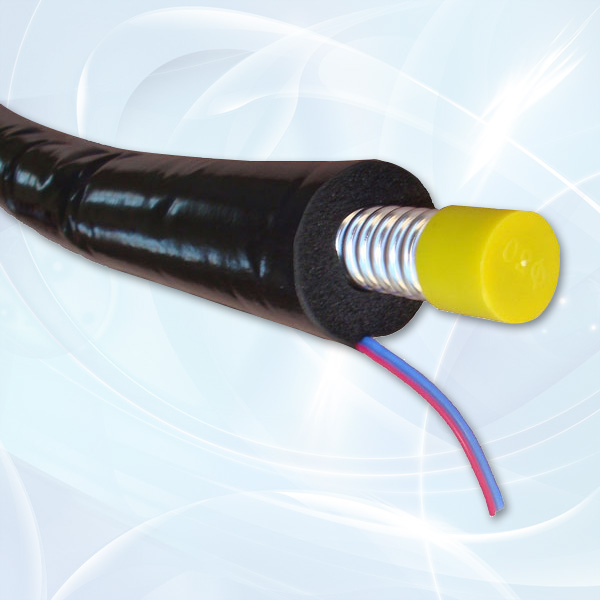

The whole system is a product that a corrugated stainless steel pipe fully insulated and incorporates a sensor cable for easy connection to collector and controller.
FEATURES
1. Easy to install and connect
2. Flexible for bending
3. Saving labor cost and time
4. High temp. resisting
5. UV-resisting
SPECIFICATION
1. Solar Pipe Sizes: DN12 (1/2"), DN16 (3/4"), DN20 (1")

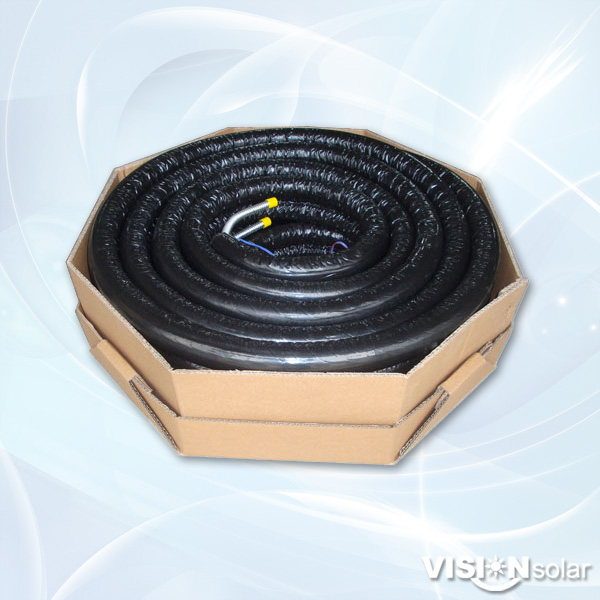

2. Pipe Roll Lengths: 5m,10m,15m, 20m, 25m, 30m, 50m
3. Flexible SS Corrugated Pipe: SUS304/ SUS316L
4. SS Pipe Wall Thickness: 0.25mm ~ 0.3mm
5. Thermal Insulation Tube: Quality EPDM
6. Insulation Tube Thickness: 13mm/ 20mm
7. Insulation Working Temperature: -57°C ~ +150°C
8. Sensor Cable: Silicon insulated high temperature cable
9. Protection Film: UV resistant and water proof film
10. Max Working Pressure: 12 bar
