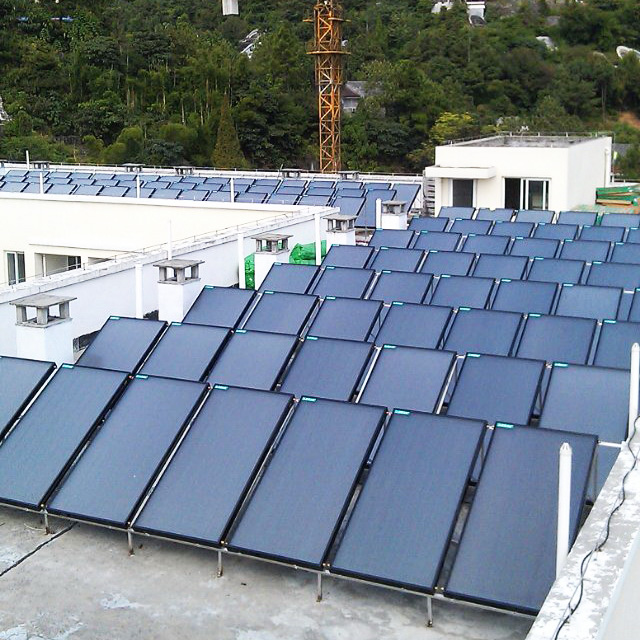

Flat Panel Solar Water Heating System VPS-FP

SYSTEM DESCRIPTION VISION VPS-FP could be designed as open-loop or closed-loop solar water heating system which heats water directly or indirectly, the system incorporates a number of high pressure flat panels, a single or several hot water

SYSTEM DESCRIPTION
VISION VPS-FP could be designed as open-loop or closed-loop solar water heating system which heats water directly or indirectly, the system incorporates a number of high pressure flat panels, a single or several hot water tanks, one control system, pump system and accessories.
The control system controls pump circulation to make heat exchange from solar collectors to storage tank.
VISION commercial solar system is widely used supplying hot water for hotels, schools, factories, hospitals, swimming pools or some other large organizations or communities requiring continuous hot water or house heating.
MAIN FEATURES
1. Daily hot water heating from 1.0 ton to 100 ton
2. Room and floor heating applications are available
3. Safe and stable high pressure solar heating system
4. Compatible with electric or gas heating devices
5. Adaptable to most kinds of building structures
6. Super anti-freezing solar water heating system
7. Working all year round even in cold climate
8. Designed for 30 years more working life
SPECIFICATION
Tank capacity: 1,000 ~ 10,000 Liter
Panel size: 2000*1060*82MM
Covering glass: Low iron tempered glass
Selective coating: Black chrome or blue TiNOX
Headers & risers: High-quality TU1 red copper pipe
Insulation: High-density rock wool and polyurethane foam
Inner tank material: Food-grade stainless steel SUS304-2B or SUS316L
Tank exchanger: High-quality copper or stainless steel pipe coils
Outer tank material: High-quality color steel or stainless steel SUS304
Tank insulation material: High-density polyurethane foaming layer
Collector bracket: Aluminum alloy or galvanized steel or stainless steel
Accessories: Solar controller; circulation pump; pressure pump
Solar collector angle: 0°; 25°; 38°; 45°; 90°
Collector inlet & outlet: 22MM; 25MM
Anti-freezing: -40°C
Working pressure: 6 bar
Working life: 25 years
